product details

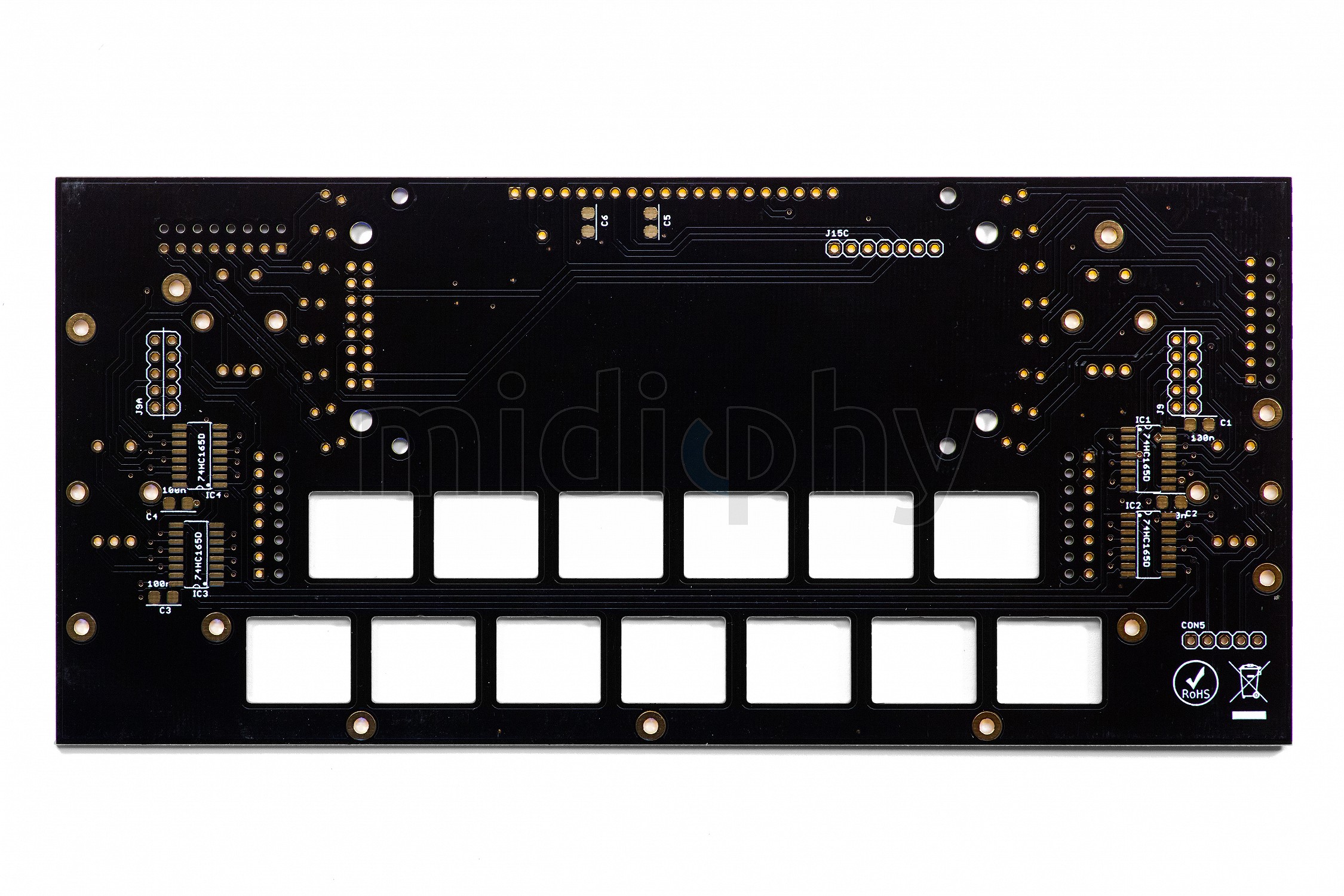

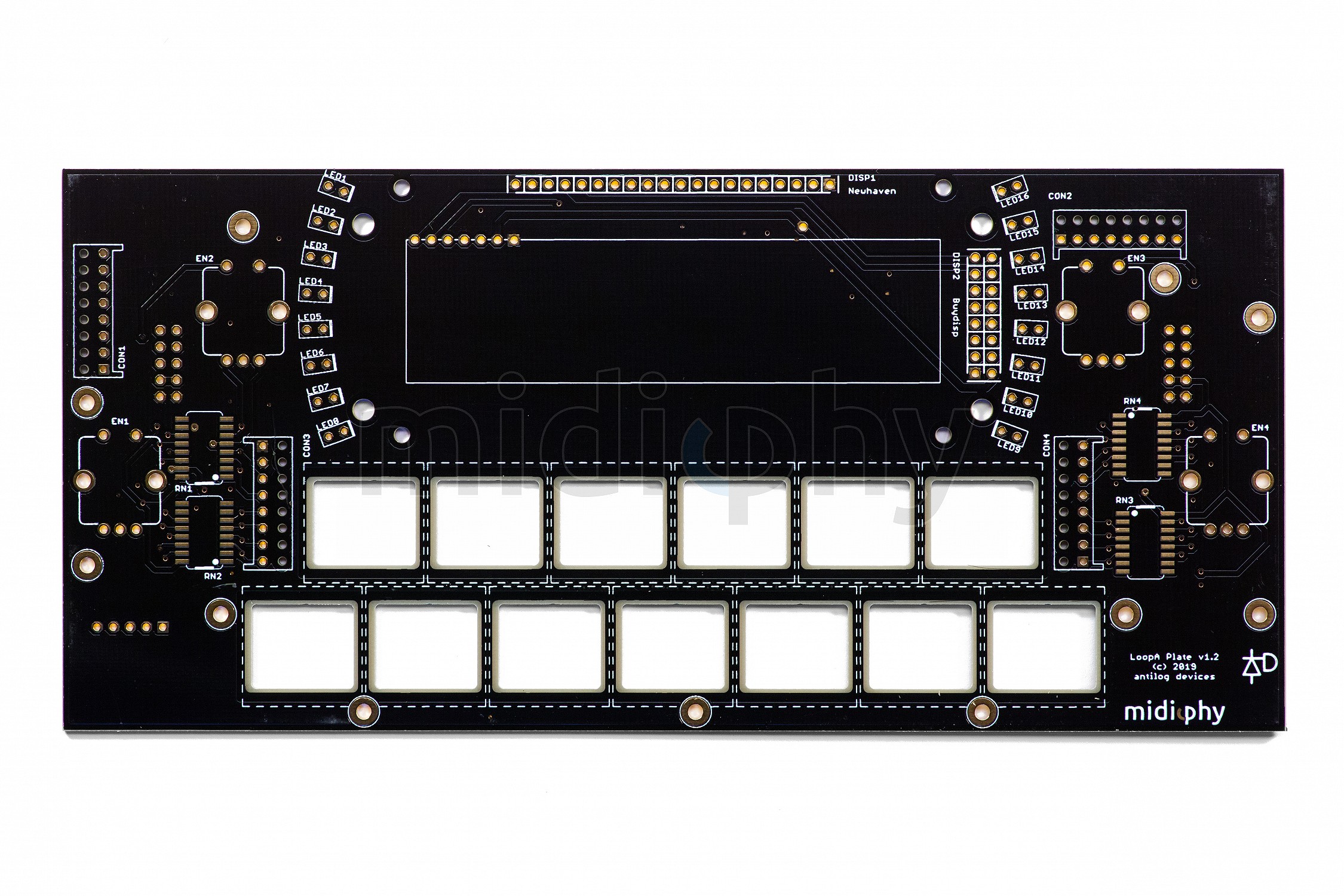

LoopA PLATE PCB
Product ID: P-LPA-03
LoopA PLATE PCB, connects to LoopA BASE and CORE PCBs with headers, carries the OLED, sixteen mode indication 2x5x7mm area LEDs and four encoders. Stabilizes the Matias switches.
Weight: 70 grams
in stock
39.98 €
incl. VAT, excl. shipping
Bill of Materials / Placement Guide
Label
Package
Name
Side
Part Link
Notes
Required Mouser parts
Can be directly transferred into your
mouser cart by copying & pasting the text below into the mouser part list import tool (you
may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
https://www.mouser.com/tools/part-list-import.aspx
80-C1206C104M5R|4 798-MDF78S254DSA55|4 649-93992-436HLF|1 595-SN74HC165D|4 517-929834-07-36-RK|2 4816P-T02-103LF|4
Required midiphy parts
You can manually add these to your cart
using the links below. If you are buying a midiphy essential kit, these should be included
already. If you are buying plain PCBs, these are necessary to complete your build.
256x64px OLED, White (for LoopA)
D-OLW-02
256x64px OLED for LoopA, 16 grayscale levels, 3.3V supply, parallel/SPI/I2C interfaces.
49.98 €
incl. VAT, excl. shipping
5pcs ALPS STEC12E08 encoders
E-STC-01
Our standard encoders. They have proven to be highly reliable after years of use. They include a pushbutton, e.g. for encoder input acceleration.
14.98 € (5 pieces)
incl. VAT, excl. shipping
LoopA LED Kit
L-L-01
A set of LEDs for your LoopA (with spares, 30 LEDs in total). Green and white colors in 2x3x4mm and 2x5x7mm sizes.
12.98 €
incl. VAT, excl. shipping
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100%
accuracy and we cannot be held liable for erroneous orders when using
this tool, including (but not limited to) incorrect quantities and/or
types of components ordered through midiphy or other suppliers.
