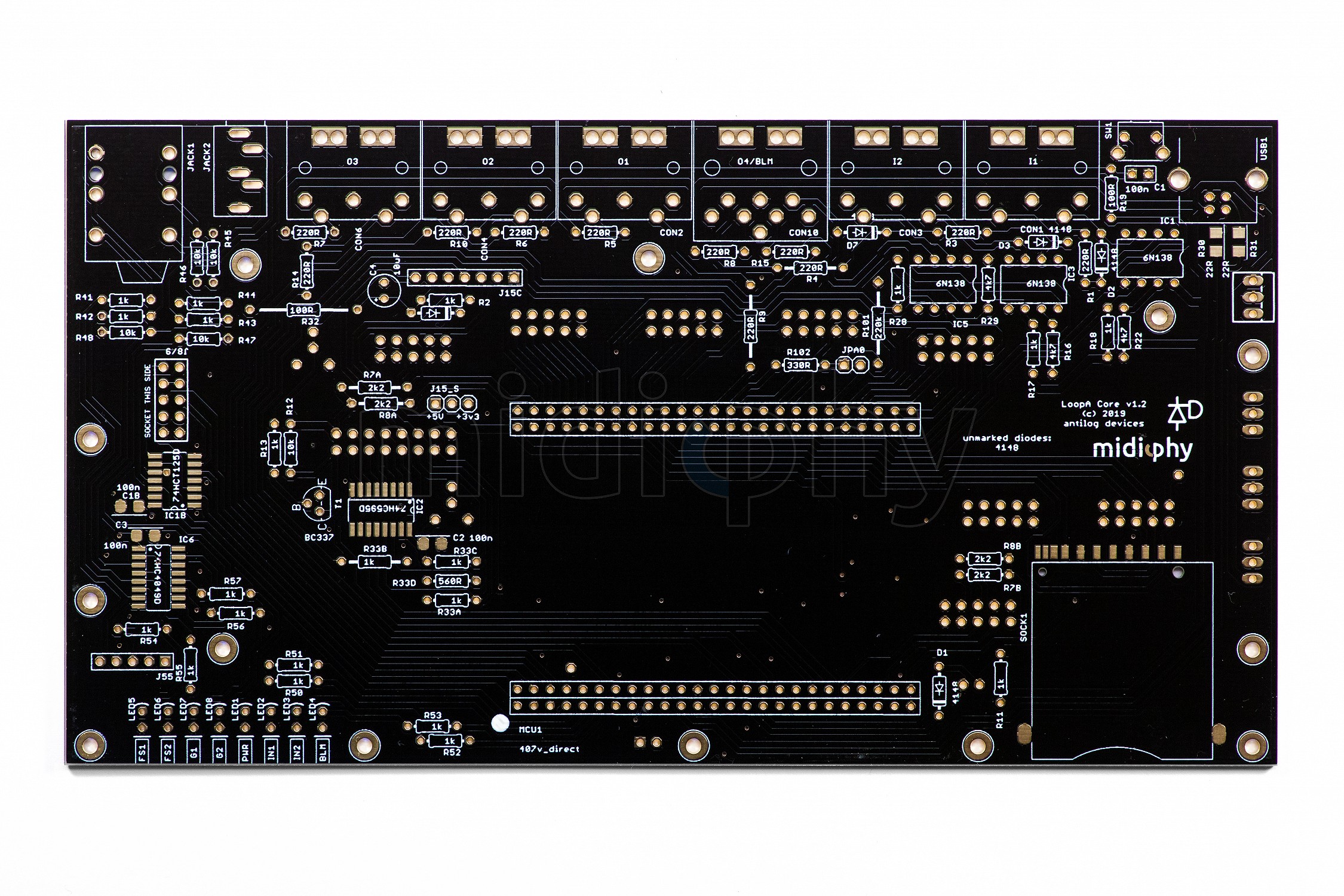

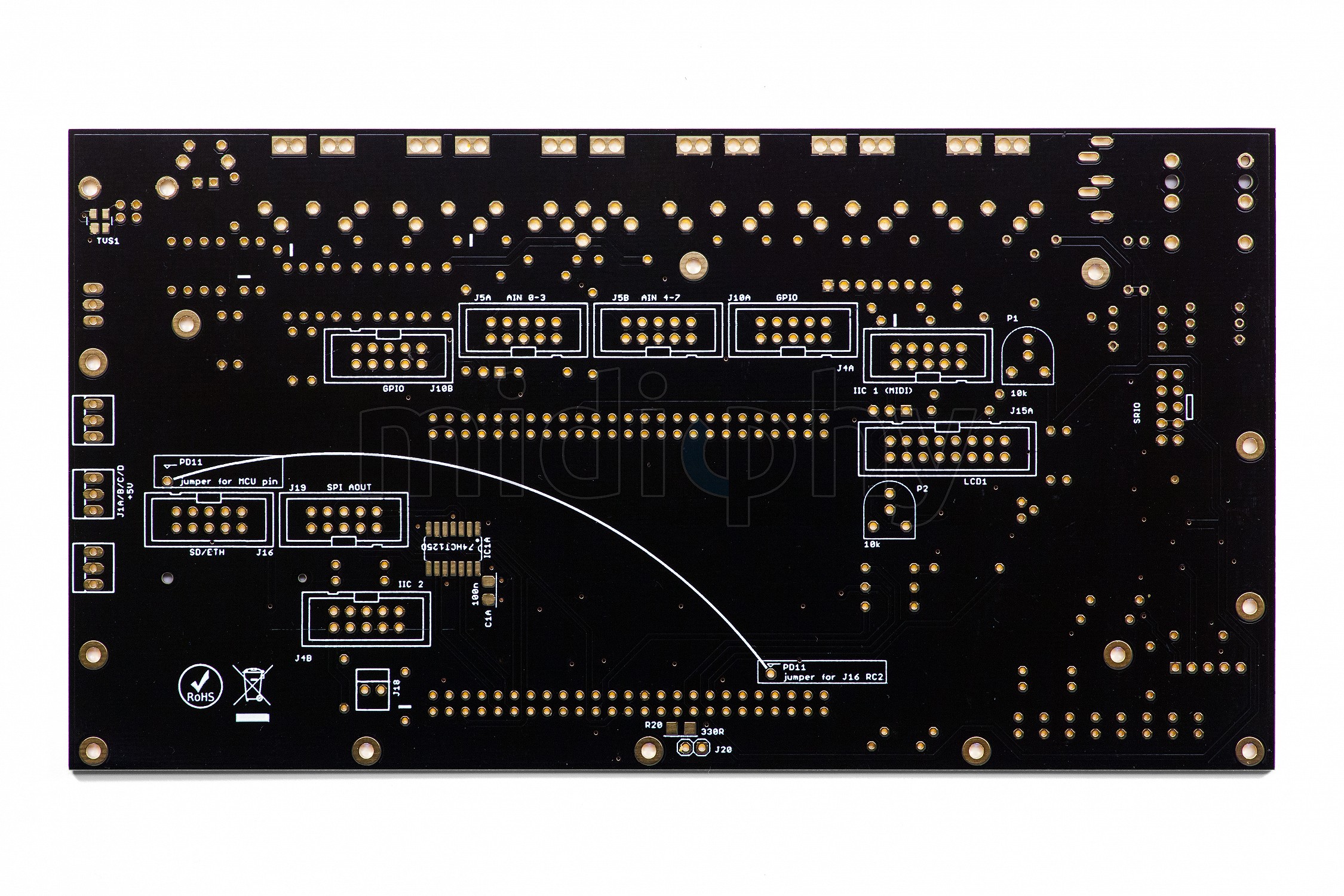

LoopA CORE PCB
Manufacturer: antilog devices
Product ID: P-LPA-01
The LoopA CORE PCB, connects to LoopA BASE and PLATE PCBs via headers, carries the STM32F4 MCU and SD card, has a total of 6 DIN MIDI/BLM ports, two footswitch/gate sockets and a USB port.
Weight: 70 grams
in stock
29.99 €
incl. VAT, excl. shipping
add to cart
Bill of Materials / Placement Guide
Download BOM as CSV
Label
Package
Name
Part Link
C1
THT
100n 2.5mm
C1A
SMT 1206
100n
C1B
SMT 1206
100n
C2
SMT 1206
100n
C3
SMT 1206
100n
C4
E2,5-5
10uF
CON1
DIN5 Socket
I1
CON2
DIN5 Socket
O1
CON3
DIN5 Socket
I2
CON4
DIN5 Socket
O2
CON6
DIN5 Socket
O3
CON10
DIN8
O4/BLM
D1
THT
1N4148
D2
THT
1N4148
D3
THT
1N4148
D4
THT
1N4148
D7
THT
1N4148
IC1
DIL08
6N138
IC1
DIL08
Socket 8 pin
IC1A
SMT SO14
74HCT125D
IC1B
SMT SO14
74HCT125D
IC2
SMT SO16
74HC595D
IC3
DIL08
6N138
IC3
DIL08
Socket 8 pin
IC5
DIL08
6N138
IC5
DIL08
Socket 8 pin
IC6
SMT SO16
74HC4049D
J4A
HDR Shr 10
IIC 1 (MIDI)
J4B
HDR Shr 10
IIC 2
J5A
HDR Shr 10
AIN 0-3
J5B
HDR Shr 10
AIN 4-7
J8/9
2x5_fem_header
SRIO
J10A
HDR Shr 10
GPIO
J10B
HDR Shr 10
GPIO
J15A
HDR Shr 16
LCD1
J15C
1x7_fem_header
PINHD-1X7SOCK
J15_S
HDR 1x3
3 pins
J16
HDR Shr 10
SD/ETH
J18
HDR 1x2
2 pins
J19
HDR Shr 10
SPI AOUT
J20
HDR 1x2
2 pins
J55
1x5_fem_header
1X5 socket
JACK1
Jack_6.35mm
AUDIO-JACK-NEUTR
JACK1
Jack_6.35mm
Neutrik_nut
JACK2
Audio Jack
ANA_GATE
JPA0
HDR 1x2
2 pins
LED1
LED 2x3x4 Hor
LPA
LED2
LED 2x3x4 Hor
LPA
LED3
LED 2x3x4 Hor
LPA
LED4
LED 2x3x4 Hor
LPA
LED5
LED 2x3x4 Hor
LPA
LED6
LED 2x3x4 Hor
LPA
LED7
LED 2x3x4 Hor
LPA
LED8
LED 2x3x4 Hor
LPA
MCU1
Waveshare
407v_direct
P1
THT Pot 6mm
10k
P2
THT Pot 6mm
10k
R1
THT
220R
R3
THT
220R
R4
THT
220R
R5
THT
220R
R6
THT
220R
R7
THT
220R
R7A
THT
2k2
R7B
THT
2k2
R8
THT
220R
R8A
THT
2k2
R8B
THT
2k2
R9
THT
220R
R10
THT
220R
R12
THT
10k
R13
THT
1k
R14
THT
220R
R15
THT
220R
R16
THT
1k
R17
THT
4k7
R19
THT
100R
R20
SMT 1206
330R
R22
THT
4k7
R29
THT
4k7
R30
SMT 1206
22R
R31
SMT 1206
22R
R32
THT
100R
R33A
THT
1k
R33B
THT
1k
R33C
THT
1k
R33D
THT
560R
R45
THT
10k
R46
THT
10k
R47
THT
10k
R48
THT
10k
R61
SMT 1206
10k
R62
SMT 1206
10k
R101
THT
220k
R102
THT
330R
SOCK1
SMT SD Slot
SD_3M*
SW1
Reset Switch
tact low profile
T1
THT TO92
BC337
TVS1
SMT SOT143
TVS diode
USB1
THT USB B
USB B Socket
Required Mouser parts
Can be directly transferred into your mouser cart by copying & pasting the text below into the mouser part list import tool (you may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
594-K104K15X7RF5TL2|1
80-C1206C104M5R|3
667-EEU-EB1J100SH|1
806-KCDX-5S-S2|5
490-SDF-80J|1
512-1N4148TR|5
512-6N138M|3
517-4808-3004-CP|3
771-74HCT125D-Q100J|1
595-SN74HC595DR|1
757-74HC4049DBJ|1
571-5342065|1
517-929974-01-07-RK|1
649-93992-436HLF|1
517-929974-01-05-RK|1
550-20311|1
550-1005|1
490-SJ1-3535NG|1
660-MF1/4DCT52R2200F|11
660-MF1/4DCT52R1001F|20
660-MF1/4DCT52R2201F|4
660-MF1/4DCT52R4701F|3
660-MF1/4DCT52R1000F|2
652-CR1206JW-220ELF|2
660-MF1/4DCT52R5600F|1
660-MF1/4DCT52R1002F|4
660-MF1/4DCT52R2203F|1
660-MF1/4LCT52R331J|1
517-SD-RSMT-2-MQ-WF|1
642-MJTP1117|1
771-PRTR5V0U2X-T/R|1
538-67068-8000|1
Optional (DNF) Mouser parts
These parts are not required for a normal build - in general: don't buy them! They would go to the greyed-out locations specified as DNF ("do not fit") in the BOM above. If you want them anyways, e.g. for a special usecase, you can also copy & paste them into your mouser cart:
80-C1206C104M5R|1
771-74HCT125D-Q100J|1
517-30310-6002|8
517-N2516-6002RB|1
649-93992-436HLF|1
652-3306F-1-103|2
660-MF1/4DCT52R1002F|1
660-MF1/4DCT52R1001F|1
652-CR1206JW-331ELF|1
652-CR1206JW-103ELF|2
512-BC33725TAR|1
Required midiphy parts
You can manually add these to your cart using the links below. If you are buying a midiphy essential kit, these should be included already. If you are buying plain PCBs, these are necessary to complete your build.
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100% accuracy and we cannot be held liable for erroneous orders when using this tool, including (but not limited to) incorrect quantities and/or types of components ordered through midiphy or other suppliers.
