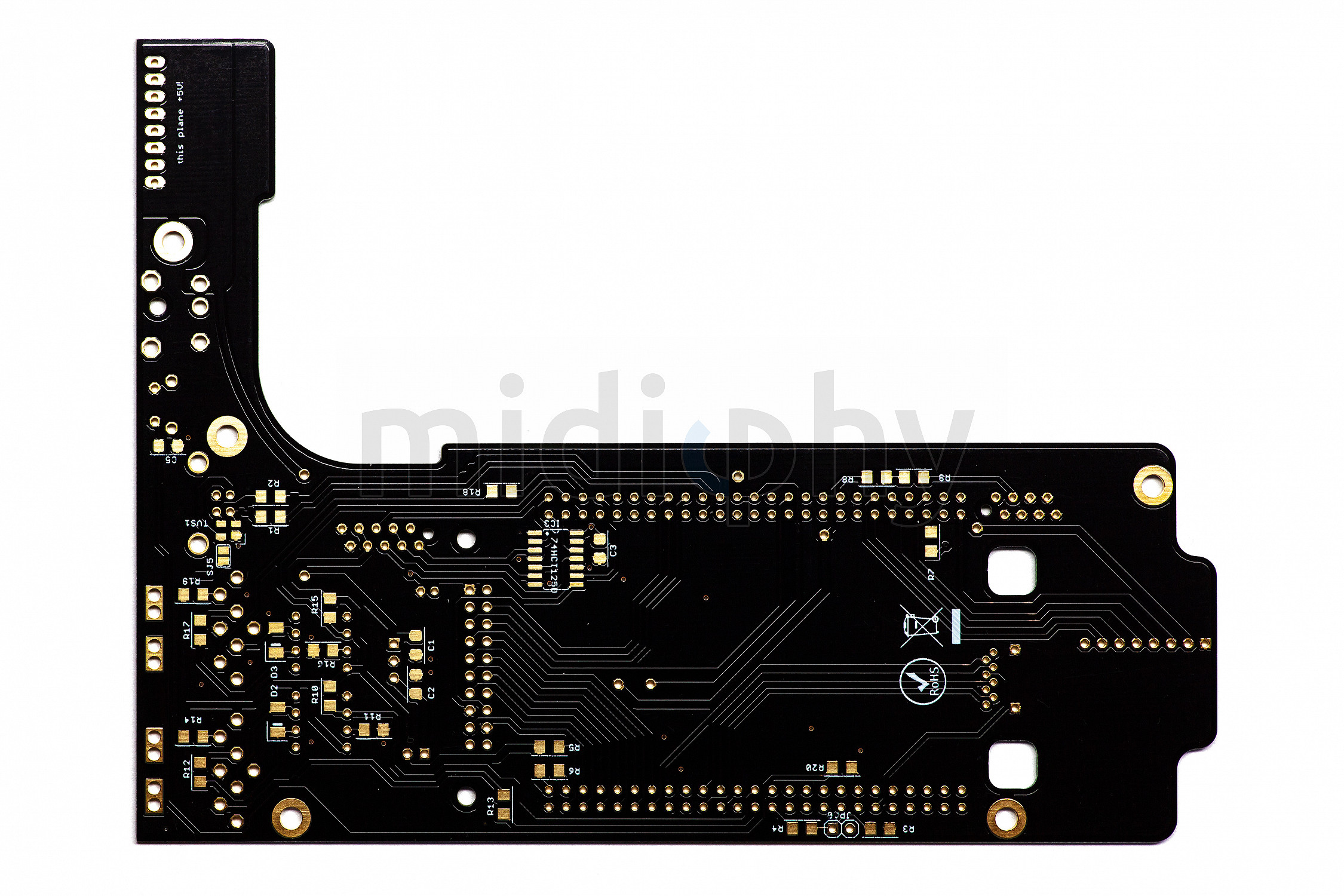

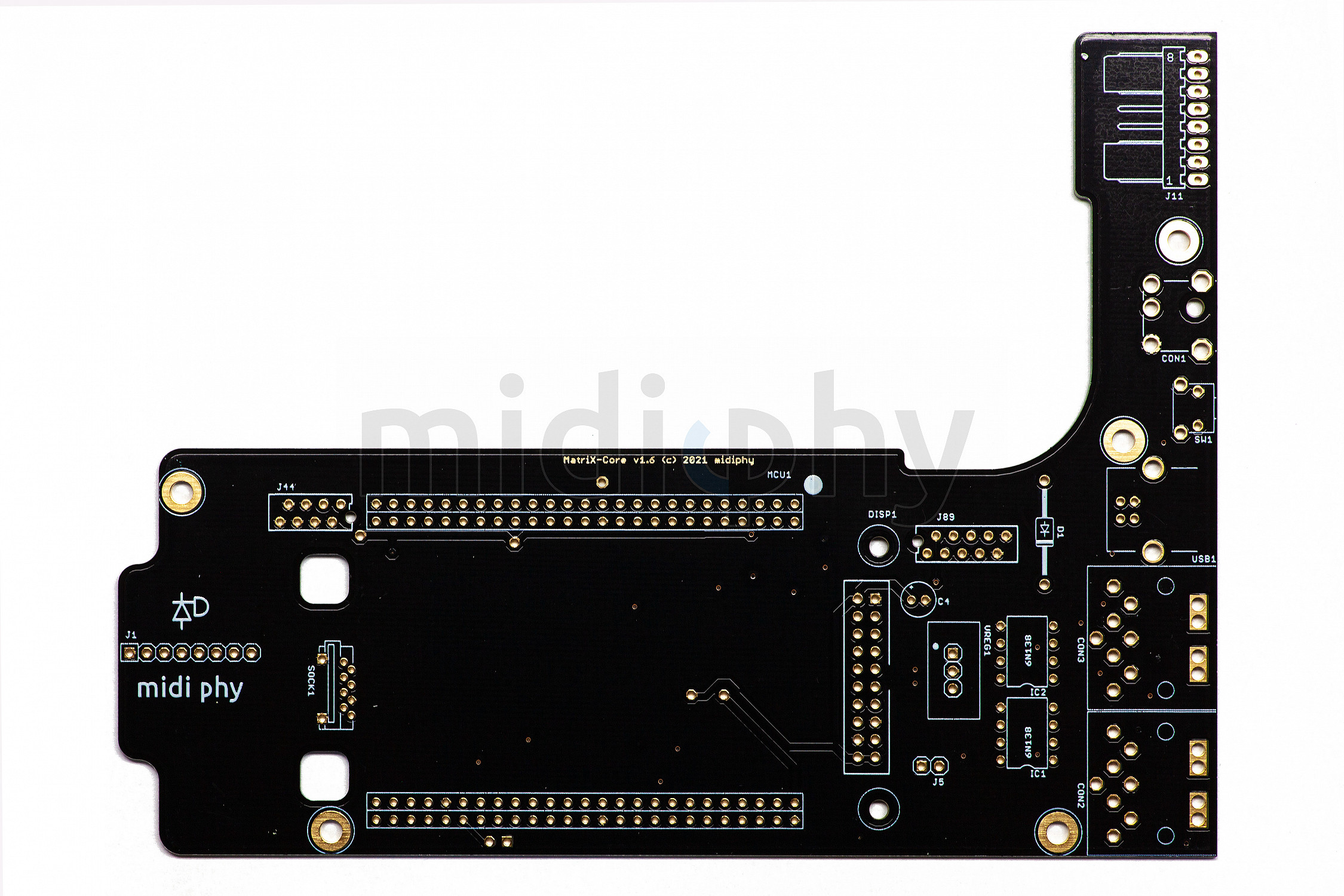

MatriX Core PCB
Manufacturer: antilog devices
Product ID: P-MTX-01
Dedicated core board for the MatriX. Two BLM bidirectional MIDI connectors and power distribution.
Weight: 40 grams
19.98 €
incl. VAT, excl. shipping
out of stock
Login or create your free customer account to receive an email, when the product is back in stock.
Bill of Materials / Placement Guide
Download BOM as CSV
Label
Package
Name
Part Link
C1
SMT 1206
10uF
C2
SMT 1206
10uF
C3
SMT 1206
100n
C4
electro 2.5
470uF
C5
SMT 1206
100n
CON1
DC barrel
2.5mm
CON2
DIN8
DIN-8
CON3
DIN8
DIN-8
D1
1N4004_15
1N5818
D2
4148_SMT
1N4148LS
D3
4148_SMT
1N4148LS
DISP1
128x128_RGB
OLED_128X128PP
DISP1
128x128_RGB
2x10 0.1" socket
DISP1
128x128_RGB
dual-row pinheader 13mm
IC1
DIL08
6N138
IC1
DIL08
Socket 8 pin
IC2
DIL08
6N138
IC2
DIL08
Socket 8 pin
IC3
SMT SO14
74HCT125D
J1
1X08
10mm
J5
HDR 1x2
2 pins
J11
molex-8_ra
22-05-7088-08
J44
micro8FOB
PINHD-2X4MICRO
J89
micro10FOB
micro10FOB
JPA0
HDR 1x2
2 pins
MCU1
Waveshare
M-407-02
MCU1
Waveshare
H-25F-01
R1
SMT 1206
22R
R2
SMT 1206
22R
R3
SMT 1206
220k
R4
SMT 1206
330R
R5
SMT 1206
2k2
R6
SMT 1206
2k2
R7
SMT 1206
2k2
R8
SMT 1206
2k2
R9
SMT 1206
220R
R10
SMT 1206
1k
R11
SMT 1206
4k7
R12
SMT 1206
220R
R13
SMT 1206
220R
R14
SMT 1206
220R
R15
SMT 1206
1k
R16
SMT 1206
4k7
R17
SMT 1206
220R
R18
SMT 1206
220R
R19
SMT 1206
220R
R20
SMT 1206
100R
SOCK1
microSD
SD_YAM
SW1
Reset Switch
tact low profile
TVS1
SMT SOT143
TVS diode
USB1
THT USB B
USBPTH
VREG1
Vreg_traco
+5V
Required Mouser parts
Can be directly transferred into your mouser cart by copying & pasting the text below into the mouser part list import tool (you may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
80-C1206C104M5R|2
647-UVZ1A471MED|1
490-PJ-079BH|1
490-SDF-80J|2
583-1N5818-T|1
512-FDLL4148|2
763-NHD1.5128128UGC3|1
517-929852-01-10-RA|1
517-665-04-36|1
512-6N138M|2
517-4808-3004-CP|2
595-SN74HCT125DR|1
517-929834-03-36-RK|1
649-93992-436HLF|1
538-22-05-7088|1
571-7-215079-8|1
571-12150790|1
652-CR1206JW-220ELF|2
652-CR1206JW-224ELF|1
652-CR1206JW-331ELF|1
652-CR1206JW-222ELF|4
652-CR1206JW-221ELF|7
652-CR1206-JW-102ELF|2
652-CR1206-JW-472ELF|2
652-CR1206JW-101ELF|1
642-MJTP1117|1
771-PRTR5V0U2X-T/R|1
538-67068-7041|1
495-TSR2-2450|1
Optional (DNF) Mouser parts
These parts are not required for a normal build - in general: don't buy them! They would go to the greyed-out locations specified as DNF ("do not fit") in the BOM above. If you want them anyways, e.g. for a special usecase, you can also copy & paste them into your mouser cart:
963-TMK316BJ106KL-T|2
649-93992-436HLF|1
Required midiphy parts
You can manually add these to your cart using the links below. If you are buying a midiphy essential kit, these should be included already. If you are buying plain PCBs, these are necessary to complete your build.
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100% accuracy and we cannot be held liable for erroneous orders when using this tool, including (but not limited to) incorrect quantities and/or types of components ordered through midiphy or other suppliers.
