SEQv4+ LE-MEC RH PCB
Product ID: P-SEQ-02R

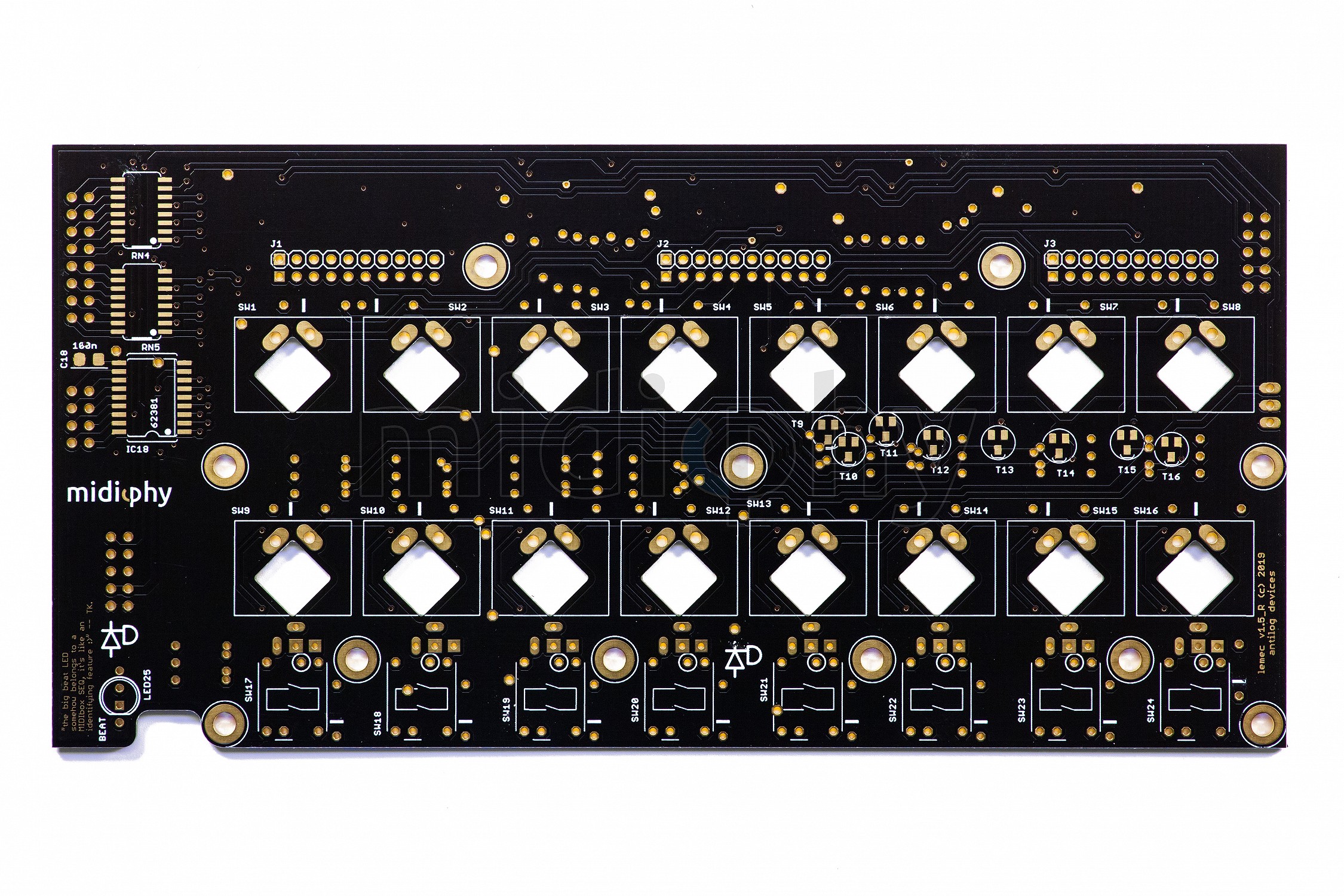

Right-hand v4+ user interface board with illuminated Matias and Apem (MEC) switches, plus Beat LED. SRIO DIN for button matrix and encoder scanning, extra registers for activity matrix.
Weight: 60 grams
in stock
38.98 €
incl. VAT, excl. shipping
Bill of Materials / Placement Guide
Label
Package
Name
Side
Part Link
Notes
Required Mouser parts
Can be directly transferred into your
mouser cart by copying & pasting the text below into the mouser part list import tool (you
may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
https://www.mouser.com/tools/part-list-import.aspx
80-C1206C104M5R|9 512-1N4148TR|24 863-BAT54LT1G|8 595-SN74HC165D|3 595-SN74HC595DR|5 757-TBD62381AFWGEHZ|1 517-929700-01-36-RK|1 710-61201021621|2 517-N2516-6002RB|1 517-30308-6002HB|1 604-WP154A4SUREQBFZW|1 652-CRM1206QJW-103E|9 660-MF1/4DCT52R1001F|17 660-MF1/4DCT52R47R0F|16 660-MF1/4DCT52R4701F|1 652-4610X-1LF-10K|3 652-4816P-1LF-10K|2 652-CR1206-JW-102ELF|8 642-3FTH9|8 642-1S11-19.0|8 863-BC818-40LT1G|8 771-BC807-25-T/R|8
Required midiphy parts
You can manually add these to your cart
using the links below. If you are buying a midiphy essential kit, these should be included
already. If you are buying plain PCBs, these are necessary to complete your build.
4x required
5pcs cPixel RGB LEDs
L-RGB-03
5pcs cPixel common cathode RGB LEDs, ideal for backlighting Matias switches. Vac-packed for freshness! Solder at 300°C max.
2.49 € (5 pieces)
incl. VAT, excl. shipping
16x required
5pcs Matias Quiet Click Tactile Switch
S-MQC-01
The quiet, but still very tactile version of the Matias "click" switch. Highly recommended!
4.99 € (5 pieces)
incl. VAT, excl. shipping
10pcs LED White Clear 2x3x4mm
L-W-01
White, 2x3x4mm, ~2mA current using a 1k current limiting resistor @5V
2.49 € (10 pieces)
incl. VAT, excl. shipping
