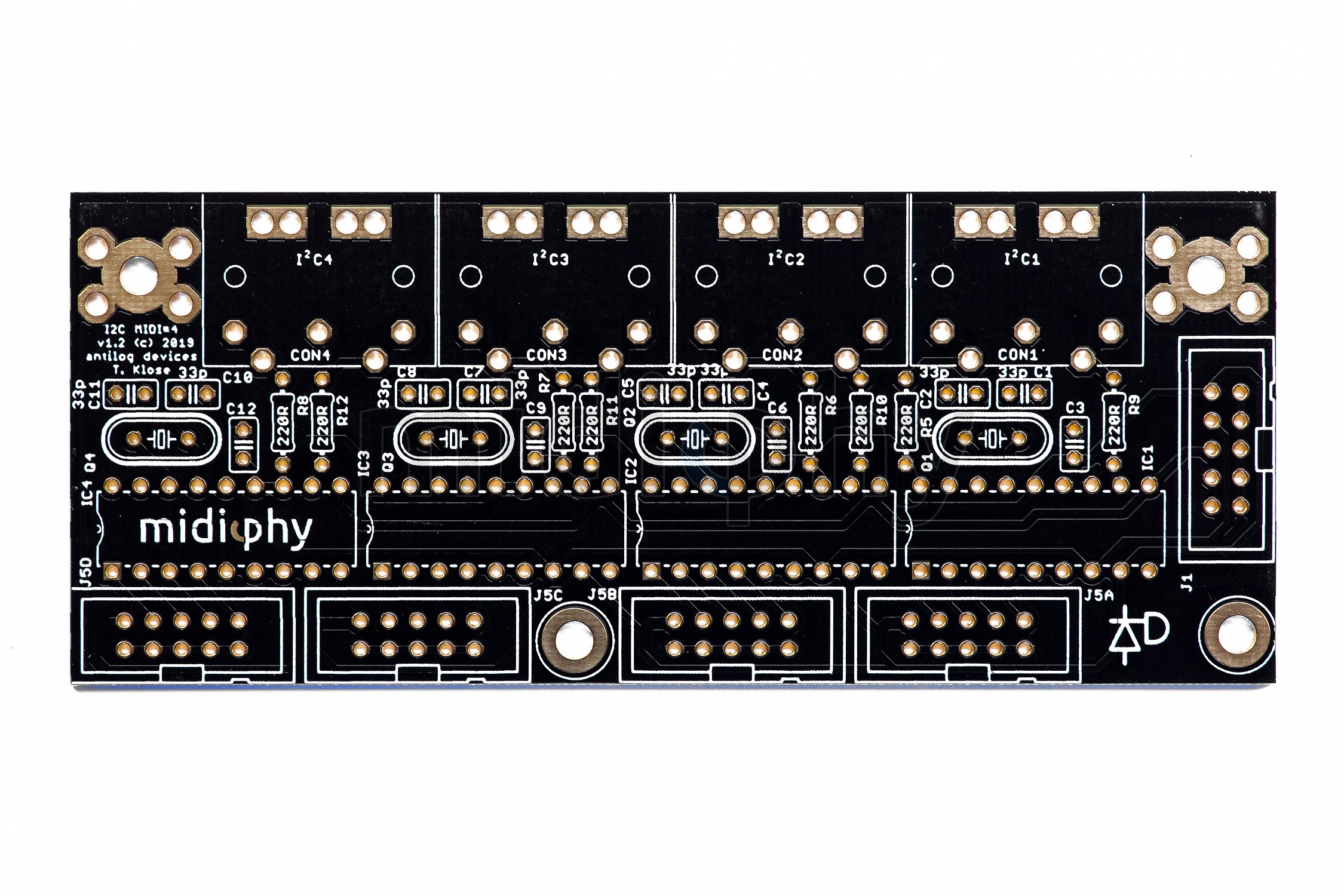

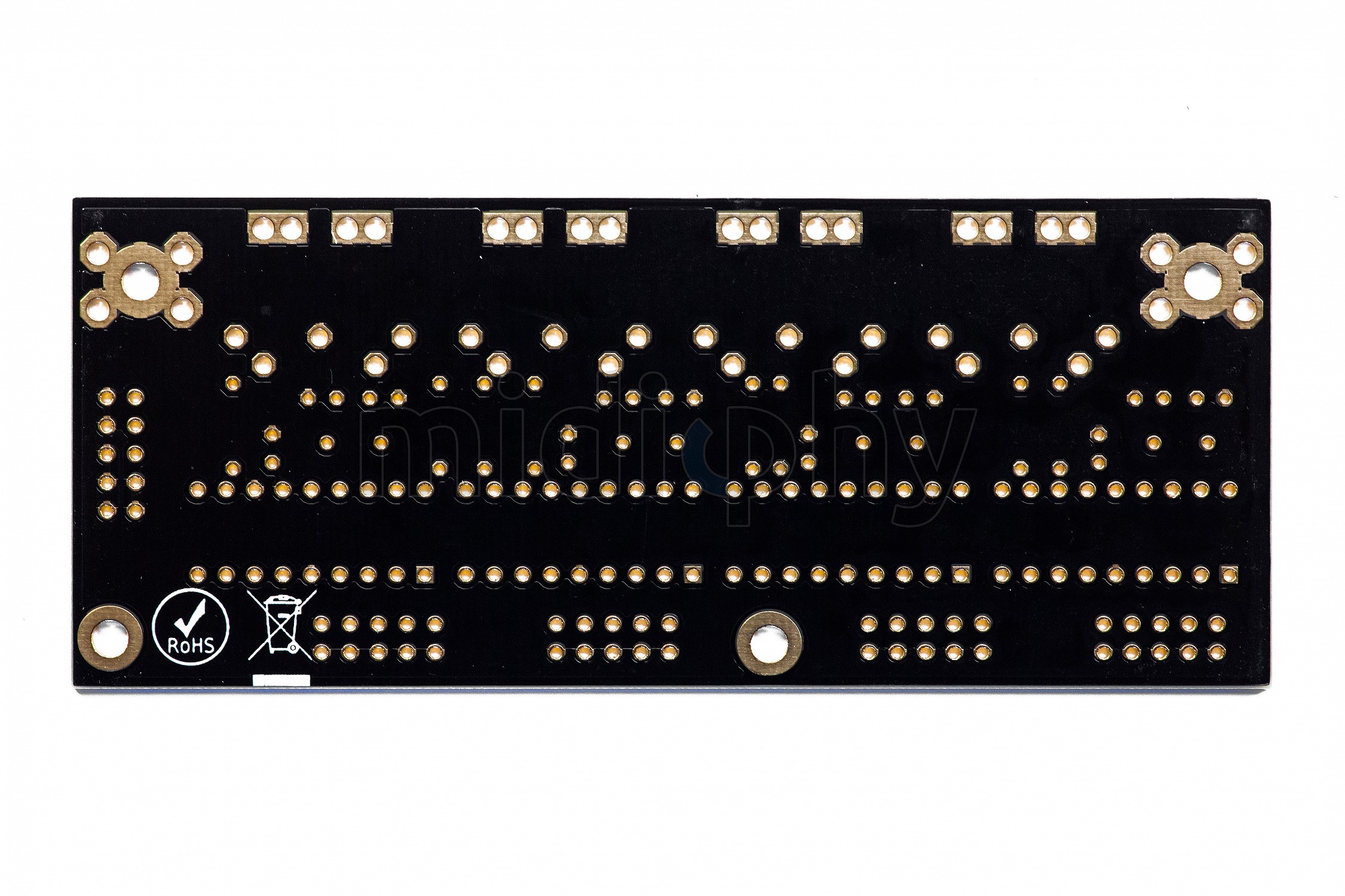

I2C PCB
Manufacturer: antilog devices
Product ID: P-COR-04
Combines four classic MIDIbox I2C modules on a single board for four MIDI outs. Requires four PIC16F88 with I2C firmware.
Weight: 30 grams
in stock
10.98 €
incl. VAT, excl. shipping
add to cart
Bill of Materials / Placement Guide
Download BOM as CSV
Label
Package
Name
Part Link
C1
THT
33p 2.5mm
C2
THT
33p 2.5mm
C3
THT
100n 2.5mm
C4
THT
33p 2.5mm
C5
THT
33p 2.5mm
C6
THT
100n 2.5mm
C7
THT
33p 2.5mm
C8
THT
33p 2.5mm
C9
THT
100n 2.5mm
C10
THT
33p 2.5mm
C11
THT
33p 2.5mm
C12
THT
100n 2.5mm
CON1
DIN5 Socket
MIDI
CON2
DIN5 Socket
MIDI
CON3
DIN5 Socket
MIDI
CON4
DIN5 Socket
MIDI
H1
M3_PCB_MOUNT
M3_PCB
H2
M3_PCB_MOUNT
M3_PCB
IC1
DIP18
PIC16F88-I/P
IC1
DIP18
Socket 18 pin
IC2
DIP18
PIC16F88-I/P
IC2
DIP18
Socket 18 pin
IC3
DIP18
PIC16F88-I/P
IC3
DIP18
Socket 18 pin
IC4
DIP18
PIC16F88-I/P
IC4
DIP18
Socket 18 pin
J1
HDR Shr 10
10 pins
J5A
HDR Shr 10
10 pins
J5B
HDR Shr 10
10 pins
J5C
HDR Shr 10
10 pins
J5D
HDR Shr 10
10 pins
Q1
Xtal HC49/S
Crystal 20MHz
Q2
Xtal HC49/S
Crystal 20MHz
Q3
Xtal HC49/S
Crystal 20MHz
Q4
Xtal HC49/S
Crystal 20MHz
R5
THT
220R
R6
THT
220R
R7
THT
220R
R8
THT
220R
R9
THT
220R
R10
THT
220R
R11
THT
220R
R12
THT
220R
Required Mouser parts
Can be directly transferred into your mouser cart by copying & pasting the text below into the mouser part list import tool (you may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
K330J15C0GF5TL2|8
594-K104K15X7RF5TL2|4
806-KCDX-5S-S2|4
534-7695|2
517-4818-3000-CP|4
517-30310-6002|1
ECS-200-18-4X-CKM|4
660-MF1/4DCT52R2200F|8
Optional (DNF) Mouser parts
These parts are not required for a normal build - in general: don't buy them! They would go to the greyed-out locations specified as DNF ("do not fit") in the BOM above. If you want them anyways, e.g. for a special usecase, you can also copy & paste them into your mouser cart:
517-30310-6002|4
Required midiphy parts
You can manually add these to your cart using the links below. If you are buying a midiphy essential kit, these should be included already. If you are buying plain PCBs, these are necessary to complete your build.
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100% accuracy and we cannot be held liable for erroneous orders when using this tool, including (but not limited to) incorrect quantities and/or types of components ordered through midiphy or other suppliers.
Video Build Tutorial
[ UPDATES/ERRATA - IMPORTANT! ]
1:35:18 - use 20 MHz crystals for the PIC 16F88s! Value/part in the BOM has been corrected.
