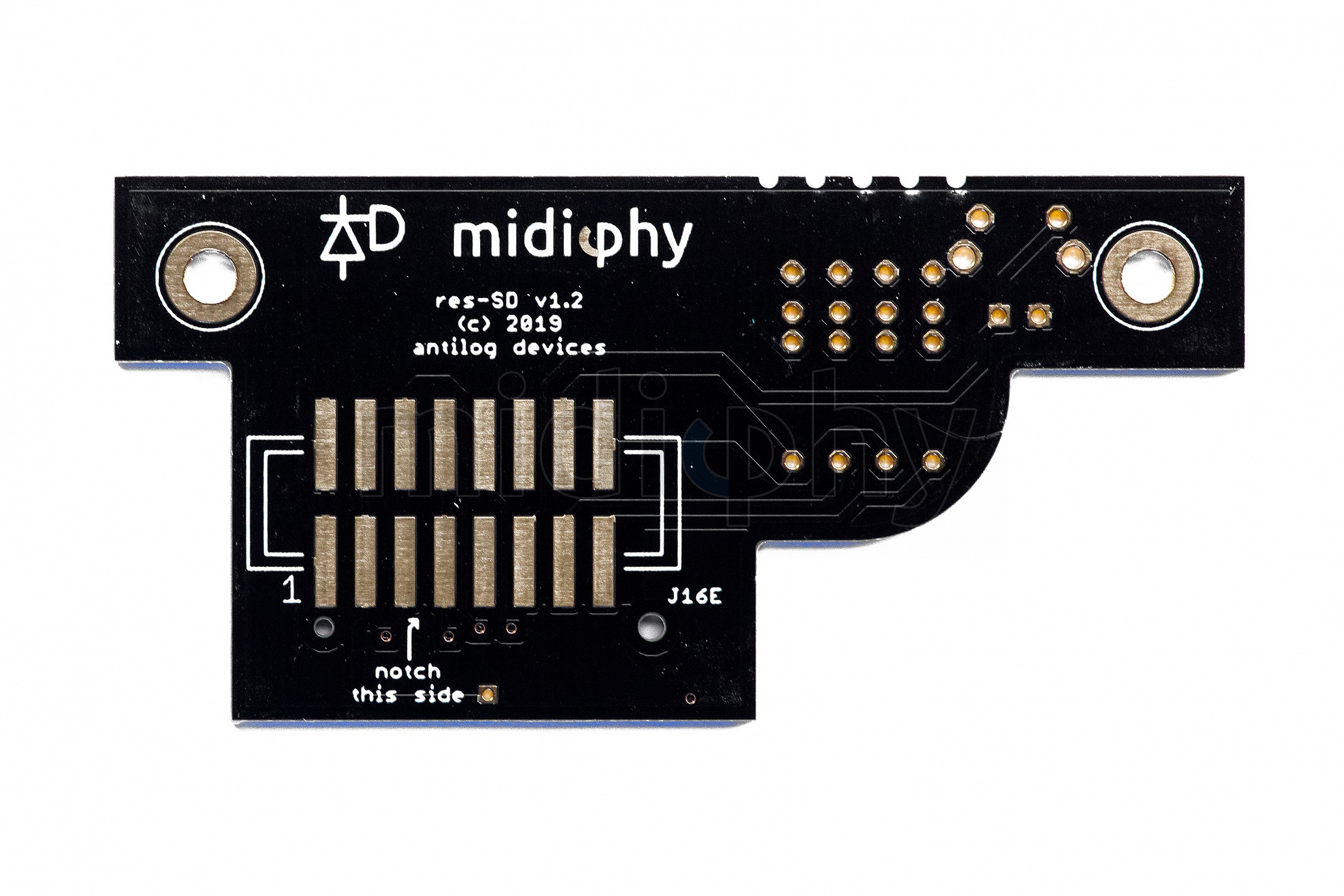

RES-SD PCB
Manufacturer: antilog devices
Product ID: P-COR-02
This board offers a SD card socket, a reset button and a handful of state indication LEDs. It is required to store user data on removable flash media.
Weight: 20 grams
in stock
7.49 €
incl. VAT, excl. shipping
add to cart

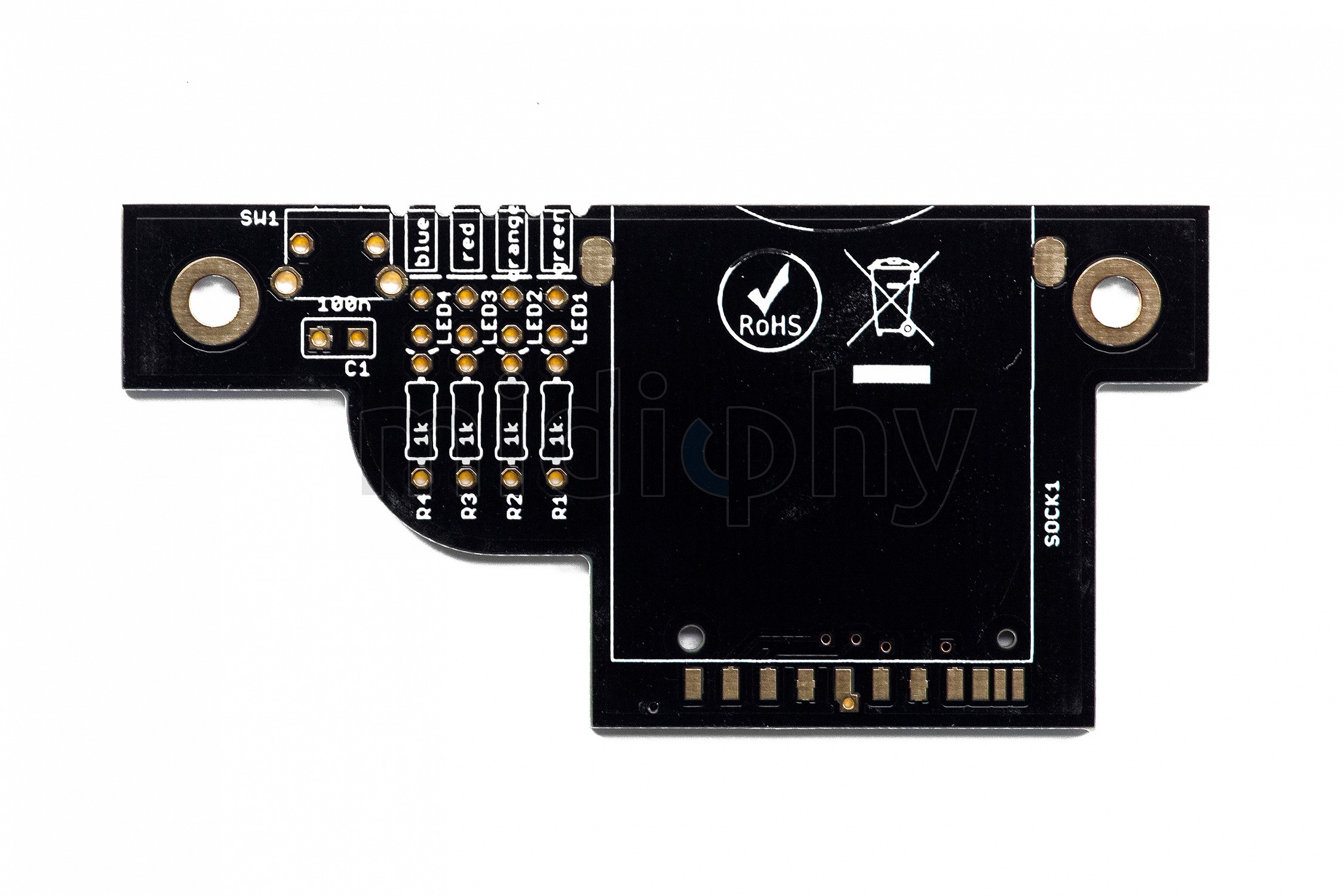

Bill of Materials / Placement Guide
Download BOM as CSV
Label
Package
Name
Part Link
C1
THT
100n 2.5mm
J16E
HDR Shr 16 SMT
16 pins
LED1
LED 2x3x4 Hor
green
LED2
LED 2x3x4 Hor
orange
LED3
LED 2x3x4 Hor
red
LED4
LED 2x3x4 Hor
blue
SOCK1
SMT SD Slot
3M SD
SW1
Reset Switch
tact low profile
Required Mouser parts
Can be directly transferred into your mouser cart by copying & pasting the text below into the mouser part list import tool (you may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
594-K104K15X7RF5TL2|1
517-D2516-6V0C-AR-WE|1
660-MF1/4DCT52R1001F|4
517-SD-RSMT-2-MQ-WF|1
642-MJTP1117|1
Required midiphy parts
You can manually add these to your cart using the links below. If you are buying a midiphy essential kit, these should be included already. If you are buying plain PCBs, these are necessary to complete your build.
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100% accuracy and we cannot be held liable for erroneous orders when using this tool, including (but not limited to) incorrect quantities and/or types of components ordered through midiphy or other suppliers.
Video Tutorial
