product details

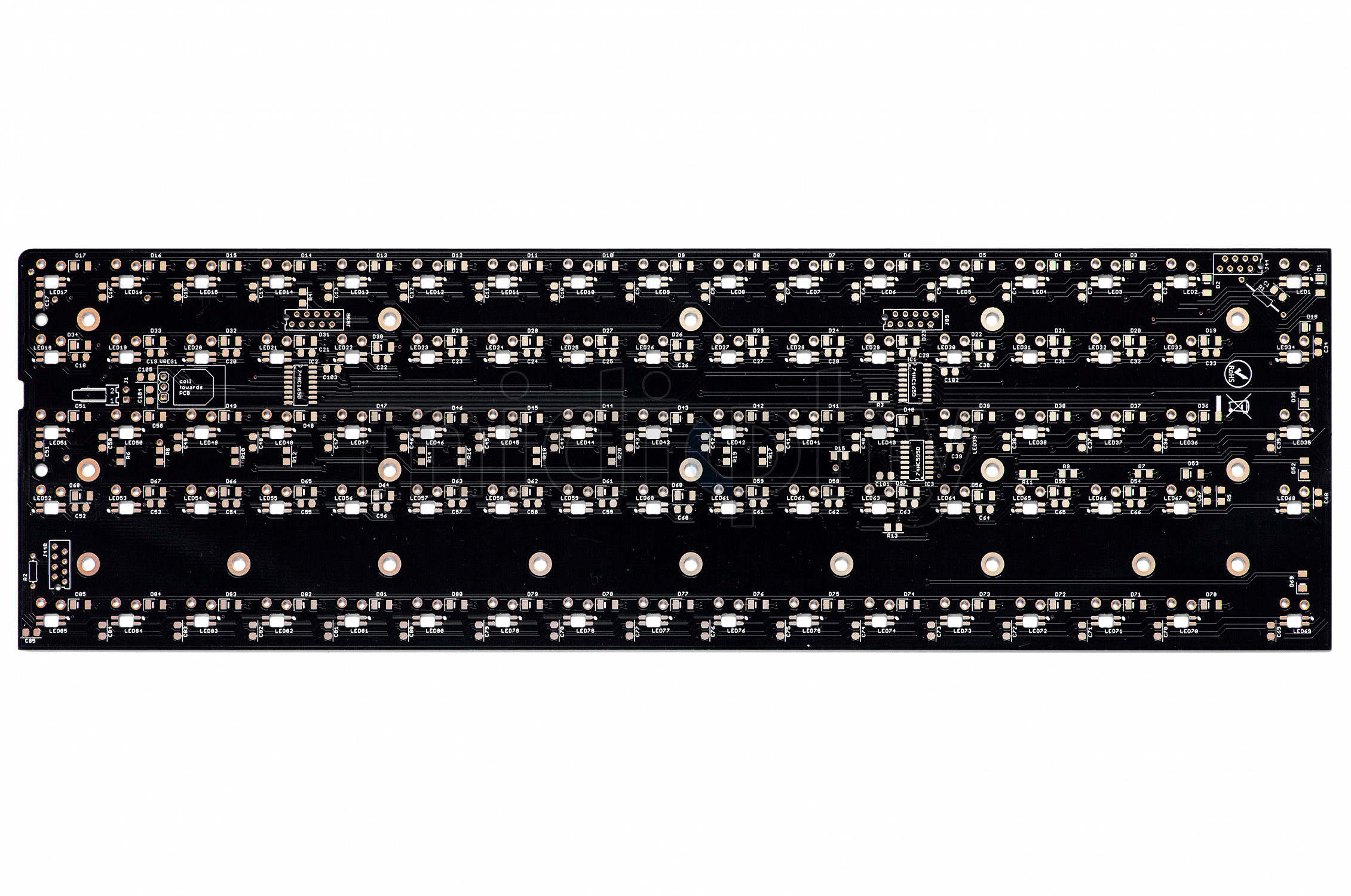

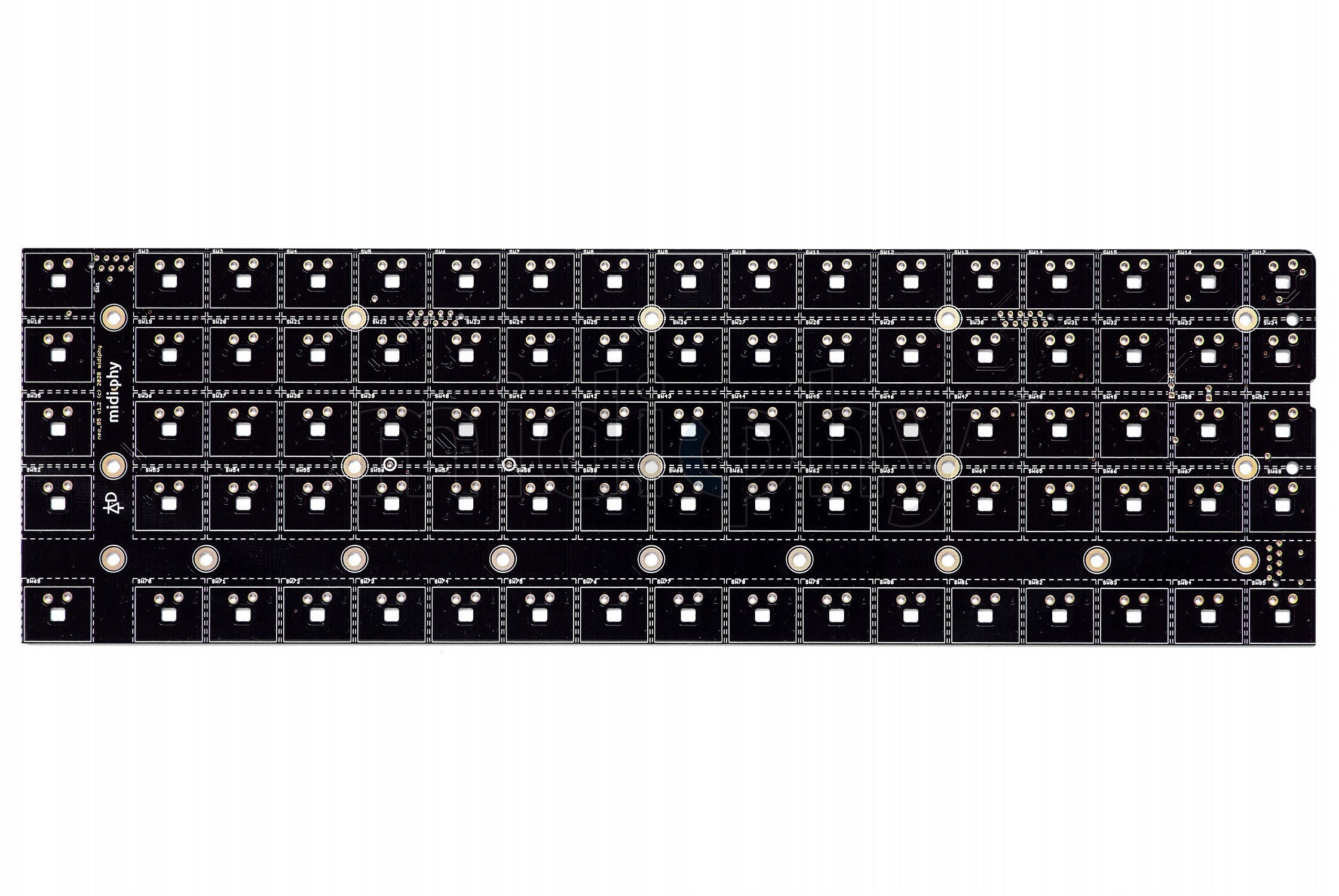

MatriX neo_85 PCB
Product ID: P-MTX-04
17x5 illuminated mechanical key matrix with full RGB.
Weight: 40 grams
in stock - expected to ship in 24 days on Sep 12
We are on holiday.
Shipping is delayed, but you can still order.
We are on holiday.
Shipping is delayed, but you can still order.
69.98 €
incl. VAT, excl. shipping
Bill of Materials / Placement Guide
Label
Package
Name
Side
Part Link
Notes
Required Mouser parts
Can be directly transferred into your
mouser cart by copying & pasting the text below into the mouser part list import tool (you
may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
https://www.mouser.com/tools/part-list-import.aspx
80-C1206C104M5R|88 512-FDLL4148|85 583-1N5818-T|1 595-SN74HC165D|2 595-SN74HC595DR|1 538-22-05-7028|1 571-7-215079-8|2 571-12150790|2 660-MF1/4DCT52R2200F|2 652-CRM1206QJW-103E|18 495-TSR2-2450|1
Optional (DNF) Mouser parts
These parts are not required for a normal build - in general: don't buy them! They would go to the greyed-out locations specified as DNF ("do not fit") in the BOM above. If you want them anyways, e.g. for a special usecase, you can also copy & paste them into your mouser cart:
963-TMK316BJ106KL-T|2 583-BAT54S|2
Required midiphy parts
You can manually add these to your cart
using the links below. If you are buying a midiphy essential kit, these should be included
already. If you are buying plain PCBs, these are necessary to complete your build.
85x required
5pcs ePixel RGB LEDs
L-RGB-02
5pcs ePixel RGB LEDs, ideal for backlighting Matias switches - unpack from vacuum bag right before soldering and solder at 300°C max.
2.49 € (5 pieces)
incl. VAT, excl. shipping
85x required
5pcs Matias Quiet Click Tactile Switch
S-MQC-01
The quiet, but still very tactile version of the Matias "click" switch. Highly recommended!
4.99 € (5 pieces)
incl. VAT, excl. shipping
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100%
accuracy and we cannot be held liable for erroneous orders when using
this tool, including (but not limited to) incorrect quantities and/or
types of components ordered through midiphy or other suppliers.
